WHAT DOES A GENERATOR CONTROL PANEL DO? The generator control panel can essentially be seen as the user interface that allows operators to control the generator, as well as check on system diagnostics, overall functions, and current status of a generator. Generators are heavy pieces of machinery and like all heavy equipment, can be prone to overheating, fluctuations in speed, and can suffer from everyday wear & tear, engine fatigue, or be affected by ambient temperatures and climate. Critical functions include protecting your generator’s engine by monitoring oil pressure, coolant temperature, and automatically shutdown the generator engine to prevent irreparable or costly damage. HOW DOES A GENERATOR CONTROL PANEL WORK? Generator control panels contain a microprocessor that can process and manipulate input from sensors to help provide feedback to the genset to monitor itself and manage any processes that come about. A common feedback setting would be temperature. When the generator engine begins to reach temperatures meet or exceed to temperature sensor setting, the generator could be prompted to shutdown automatically to prevent damage. Generator control panels are often paired together with an Automatic Transfer Switch (ATS). An ATS will prompt the generator to kick in seconds within the event of power loss due to power outage. Once power is restored from the main power grid, the generator will be prompted to shut off, as service from the main grid will resume. This is simply due to the fact that because the ATS is connected to the main grid, the ATS can detect an outage and signal the control panel to start the generator without the need to manually start the generator. Without an ATS (Automatic Transfer Switch), you will need staff on-site to manually flip the switch on the generator controls to run the generator in the event of a power outage and must also manually turn off the generator once power is restored. Failure to turn off the generator after power to the main grid is restored can cause an effect called back feeding, which can be lethal to any electricians that are working on the power lines. POTENTIAL BENEFITS OF GENERATOR CONTROL PANELS Generator control panels offer a variety of benefits, including： Error elimination: A generator control panel helps eliminate operating errors. Increased efficiency: Improved generator control can help your generator run more efficiently. Improved safety: Current and volt supervision support safer operation. Fewer costs: Enhanced generator control will help lower generator upgrade frequency as well as maintenance and operation costs. Enhanced reliability: Being able to monitor generator function and perform event analysis can yield insight on making your generator more reliable.

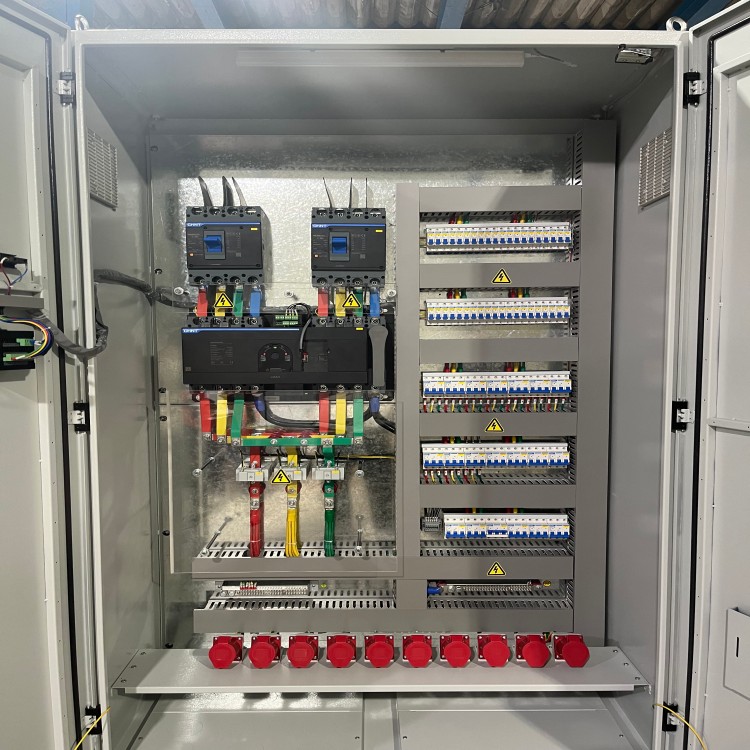

The Differences Between Switchgear and Distribution Cabinets are as Follows: 1. The function is different: switchgear is a complete set of electrical switchgear and control equipment, it is used as a power center and the main distribution device, mainly to play the role of a switch on and off. And distribution cabinet is to plays the function of distribution of electrical energy, line overload, short circuit, leakage protection role.   2. Different sizes: switchgear cabinet volume, general height in 1800mm, 2000mm, and 2200mm three, etc. And distribution cabinet volume is small, generally common only palm-sized, can be concealed in the wall, can also stand on the ground.   3. There are differences in installation sites: switchgear cabinets are often set up in substations, distribution rooms, and other places. Distribution cabinets can be installed in a variety of places, such as schools, institutions, hospitals, factories, workshops, families, etc.   4. The line material is different: switchgear cabinet mainline is often dominated by copper row, while the distribution box inside more wires.   5. Different components: low-voltage cabinets with plastic case circuit breakers and frame circuit breakers mostly. And capacitor cabinets. And distribution boxes in the content of some more complex, common is a larger switch with a string of micro-breakers below.   Switchgear Selection Points are As Follows: 1. Choose a well-known brand because the switchgear is a complete set of combined products, once encountered technical problems, equipment maintenance. And replacement are relatively troublesome. So in the case of ample budget, you should try to choose a well-known brand, well-known brands encounter problems when the solution is more efficient.   2. Before buying and selling to the manufacturer to obtain the switchgear inspection qualification. If there is no is an irregular product. Secondly, we should see whether the components of the switchgear are configured according to the requirements of the drawings.   3. To consider the cabinet material, generally speaking, good quality switchgear, components such as brackets are imported aluminum zinc plate   4. In and out of the line way, the general switchgear has two kinds of connection: one is in and out of the line cable room connection. Another is the first in and out of the line from the top of the cabinet through the wall casing led. And bus bar bridge connected bus bar bridge and then through the good casing and overhead line connection. If the second is applied, to be installed at the time of the site to supervise the work.

The working principle of the ATS control cabinet is to monitor the status of two power supplies, usually including main power supply (such as mains power) and backup power supply (such as generator). When the main power supply is normal, the ATS cabinet connects the load to the main power supply; once the main power supply is interrupted or fails, the ATS cabinet automatically switches the load to the backup power supply to ensure the continuity and reliability of power supply. When the main power supply returns to normal, the ATS cabinet will automatically switch the load back to the main power supply and stop the backup power supply.   The main components of the ATS cabinet include control components and circuit breakers, which can achieve fast and smooth power conversion and avoid power interruption caused by power switching. This kind of equipment is particularly important in power systems with strict requirements on power interruption, such as critical facilities such as hospitals and data centers, because these places require uninterrupted power supply to ensure normal operation and safety.   The ATS cabinet is simple in design and easy to operate, and can realize unattended automatic switching function. Depending on the application requirements, ATS cabinets can also be equipped with manual operation options to allow for human intervention in special circumstances. In addition, to ensure safe and reliable operation, ATS cabinets are usually equipped with short-circuit protection devices and other safety features.

Integrated PLC system or modular PLC system for choice One-stop purchasing service with custom electrical cabinet and branded component, saving more cost for you ability to control and adjust system operations more effectively, thereby improving factory automation levels high quality enlosure and professional engineer team supplies technology support fast delivery in 15-25 days, meet your urgent project needs

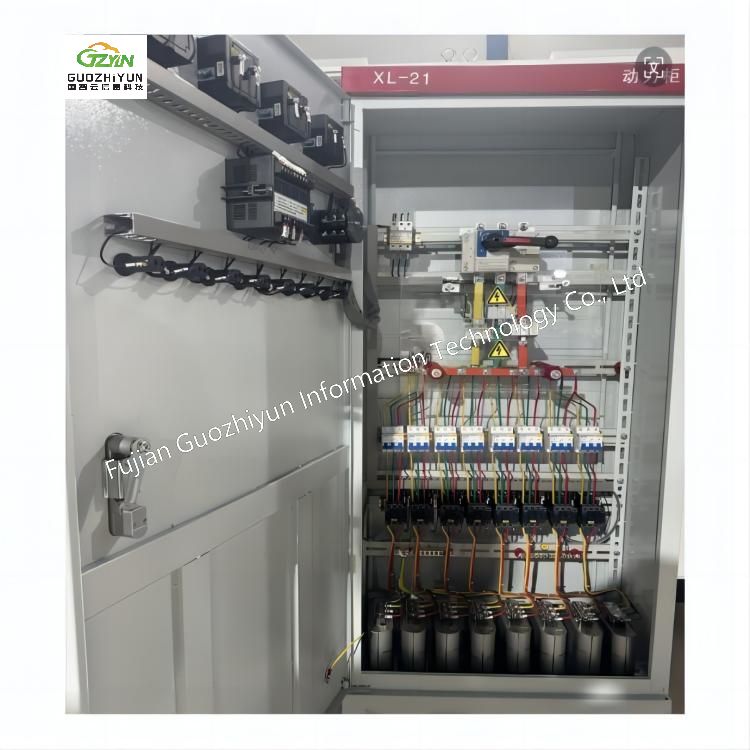

Most of the load types in the power system belong to the perceptual load, and the widespread use of power electronic equipment by power enterprises makes the power factor of the network lower.Lower power factor reduces equipment utilization rate, increases power supply investment, damages voltage quality, reduces equipment service life, and greatly increases line loss.Therefore, by connecting the capacitor compensation cabinet in the power system, the perceptual load can be balanced, the power factor can be improved, and the utilization rate of the equipment can be improved.   The function of compensation cabinet is to raise the line voltage and reduce the reactive power loss by using the parallel connection of capacitor when the current leads the voltage 90 degrees.The capacitor compensation cabinet is full of compensation capacitors and contactors, that is to say, it uses the phase-shifting principle of capacitors to compensate the reactive power loss generated by the equipment.General power failure or power supply does not need to operate, it can be with the opening and closing of the main power supply in parallel operation.Generally, as long as the attention to check at any time inside the capacitor has leakage or abnormal sound and other abnormal conditions can be.   Capacitive compensation cabinet compensates inductive reactance of inductance load by capacitive reactance.Reduce reactive current to achieve energy saving effect.

Electrical explosion-proof cabinet is a type of electrical equipment specially designed for use in environments where explosions may occur. It can prevent internal explosions from spreading to the external environment while protecting internal equipment from external explosions. Here are some of the main features and uses of electrical explosion-proof cabinets: Safety protection: The main function of electrical explosion-proof cabinets is to provide power distribution and line protection to ensure safe operation in potentially explosive environments. Structural features: It usually has a double-layer cabinet design and is made of high-quality steel plates to enhance its explosion resistance and protection capabilities. Technology integration: Integrate explosion-proof technology, air fluid technology, electronic technology, sensing technology and precision processing technology to meet the needs of different application scenarios. Application scenarios: Widely used in oil exploration, oil refining, chemical industry, medicine, offshore oil platforms, tankers, oil depots, military industry and other fields, where flammable and explosive gases or dust may exist. Compliance certification: When selecting electrical explosion-proof cabinets, you should ensure that the product has a national explosion-proof certificate and relevant explosion-proof certification to ensure its safety and reliability. Non-standard customization: According to different national standards and user needs, we also provide non-standard customization services to adapt to special industrial environments and requirements.

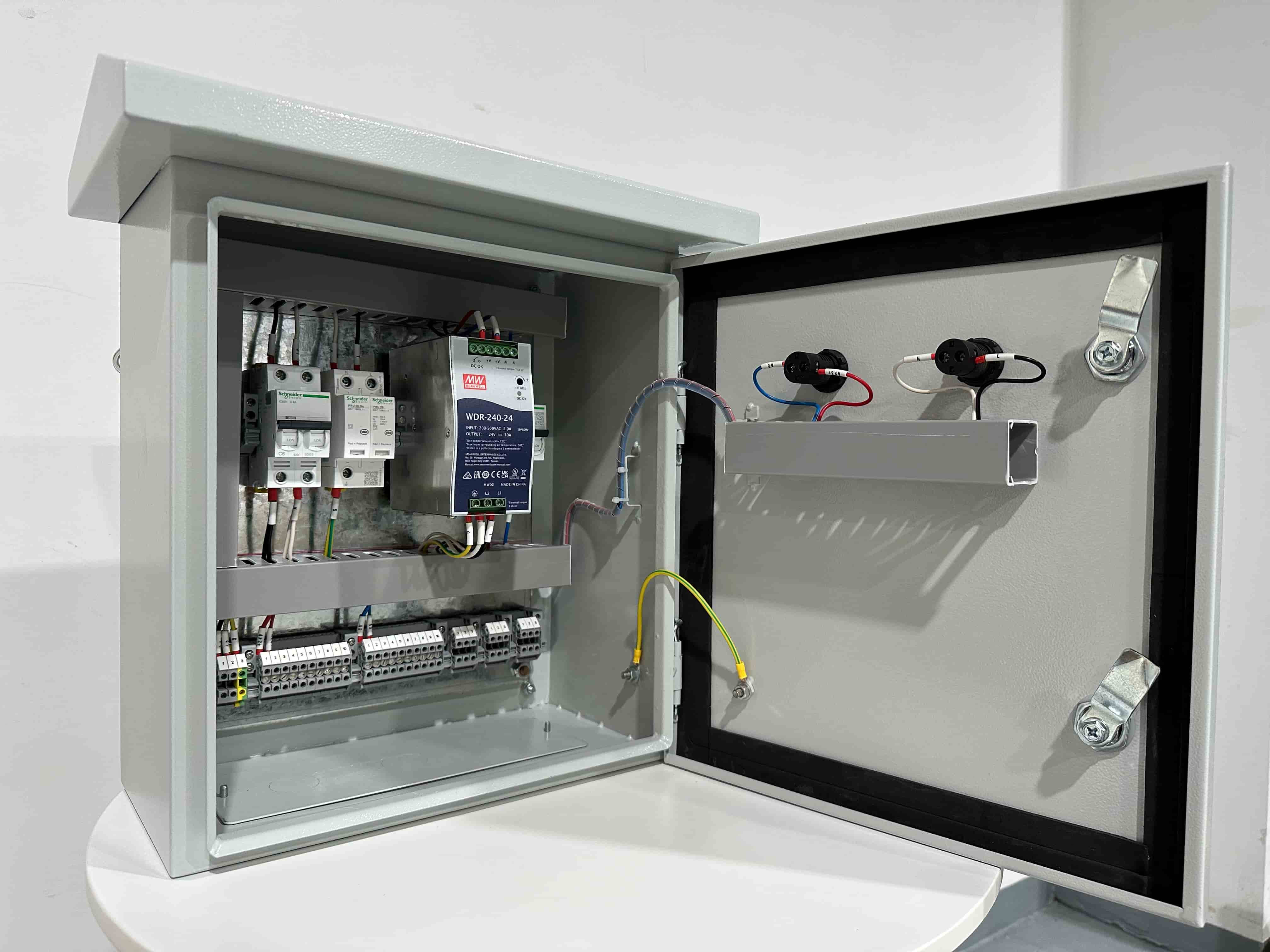

  1.Power distribution: The electrical box distributes power to different circuits and equipment through internal switching devices, ensuring that electricity can be reasonably transmitted to various places where it is needed. 2. Control function: Users can control the connection or disconnection of circuits through manual or automatic switches inside the electrical box, thereby controlling the operation status of various electrical equipment connected to the electrical box. 3. Protection function: The electrical box is equipped with protective appliances, such as circuit breakers, leakage protectors, etc., which can automatically cut off the power supply in case of overload, short circuit or leakage in the circuit, protecting the safety of the circuit and equipment. 4. Measurement function: The measuring instruments inside the electrical box can display parameters such as current and voltage, helping to monitor the working status of the circuit and the use of electrical energy. 5. Convenient management: All power related components are centrally installed in the electrical box for easy maintenance and management. 6.Safe isolation: Electrical boxes are usually designed with a certain level of protection to prevent direct contact with live parts and reduce the risk of electric shock. 7.Applicable occasions: Electrical boxes are widely used in various places such as homes, schools, hospitals, etc., while distribution cabinets are more commonly used in centralized power supply situations such as industrial electricity and building electricity. 8.Regulatory requirements: In some countries and regions, the use of electrical boxes is a mandatory measure for power distribution and control in accordance with electrical safety regulations. 9.Beautiful and tidy: The electrical box can hide wires and electrical equipment, making the installation environment more beautiful and tidy. 10.Space saving: The design of electrical boxes is usually compact, which can save installation space, especially in limited space home or office environments. 11.In summary, electrical boxes are an indispensable component of the power system. They not only provide the basic functions of power distribution, but also have multiple functions such as control, protection, measurement, and safety isolation. They are important equipment for power supply and management in modern buildings and facilities.

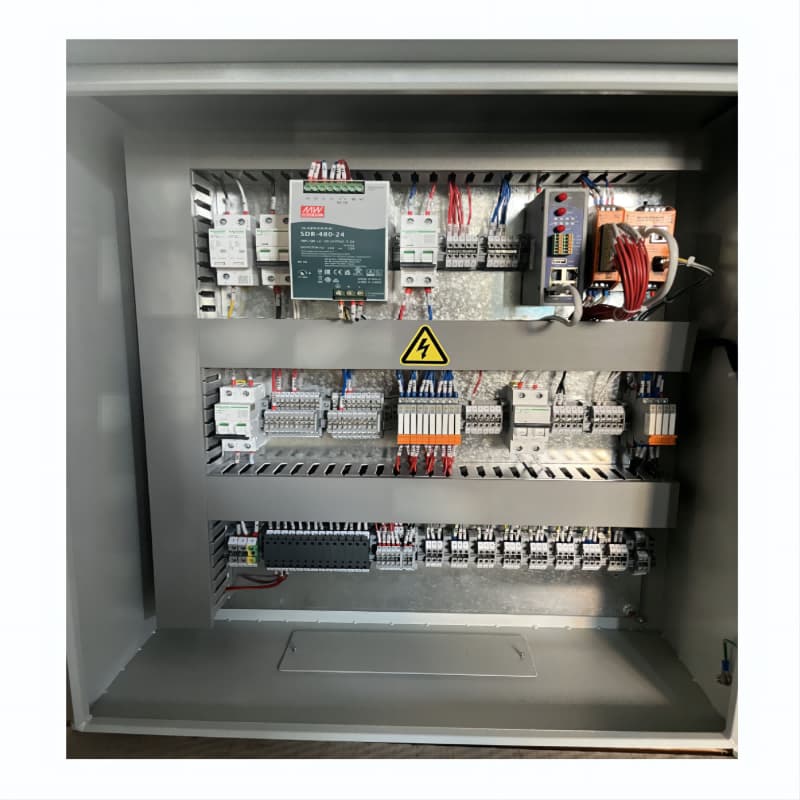

An electrical control panel is a device used for centralized management and control of power systems, typically used in power plants, substations, or industrial control systems. Its design and functionality typically include the following aspects: 1. Size and structure: Determine the overall size and structural type of the control panel based on operational requirements and the size of internal electrical components. In non special circumstances, the overall cabinet size of the electrical control panel should comply with the basic structural dimensions and series. 2. Control method: The control method of the components inside the electrical cabinet is related to the system, which may include the on/off mode of power supply and distribution, the control method of the motor, and the start stop control of the self-contained generator. Many electrical cabinets use PLC (Programmable Logic Controller) for control. 3. Protection function: The PLC control cabinet has protection functions such as overload, short circuit, and phase loss, which can complete equipment automation and process automation control, achieve network functions, and have stable performance, scalability, and strong anti-interference. 4. Components: Control cabinets usually include switchgear, measuring instruments, protective appliances, and auxiliary equipment, which are assembled in enclosed or semi enclosed metal cabinets according to electrical wiring requirements. The layout of the control cabinet should meet the requirements of normal operation of the power system, be easy to maintain, and ensure the safety of personnel and surrounding equipment. 5. Operation and maintenance: The design of the control cabinet should be easy to operate and maintain, such as the height of the cabinet door, the thickness of the installation plate, and the configuration of locks, which are all factors that need to be considered during the design. In summary, in practical applications, the design and manufacturing of electrical control panels need to follow relevant standards and specifications to ensure their reliability and safety. In addition, to adapt to different industrial applications, electrical control panels can be customized according to user needs to meet specific functional requirements.

A distribution box is an electrical equipment used for distributing electrical energy, which has the functions of safety, convenience, and control of power supply.   Here are some detailed information about the distribution box:   1. Structural composition: The distribution box is usually composed of a metal cabinet, which is equipped with switch equipment, measuring instruments, protective appliances, and auxiliary equipment inside. These components are assembled in enclosed or semi enclosed spaces according to certain electrical wiring requirements. 2. Functional use: The main function of the distribution box is to connect, disconnect, and protect circuits. It can manually or automatically control circuit connections, and when the system malfunctions or operates abnormally, it can cut off the circuit or issue an alarm signal through protective appliances. At the same time, the measuring instruments inside the distribution box can display various parameters during operation and provide prompts or signals for deviations from normal working conditions. 3. Application scenario: Distribution boxes are widely used in various places such as homes, schools, hospitals, etc. It helps to manage and maintain the power system. Especially in the event of circuit failure, the distribution box is beneficial for quickly locating and repairing problems. 4. Classification method: According to different structures and purposes, distribution boxes can be divided into power distribution boxes, lighting distribution boxes, metering cabinets, etc. In addition, there are two forms: fixed type and drawer type. The former is commonly used in situations with dispersed loads and fewer circuits, while the latter is widely used due to its space saving, convenient maintenance, and multiple outgoing lines. Overall, the distribution box is a key equipment to ensure the normal operation and safety of the power system. It not only improves the convenience of electricity use, but also ensures electricity safety.

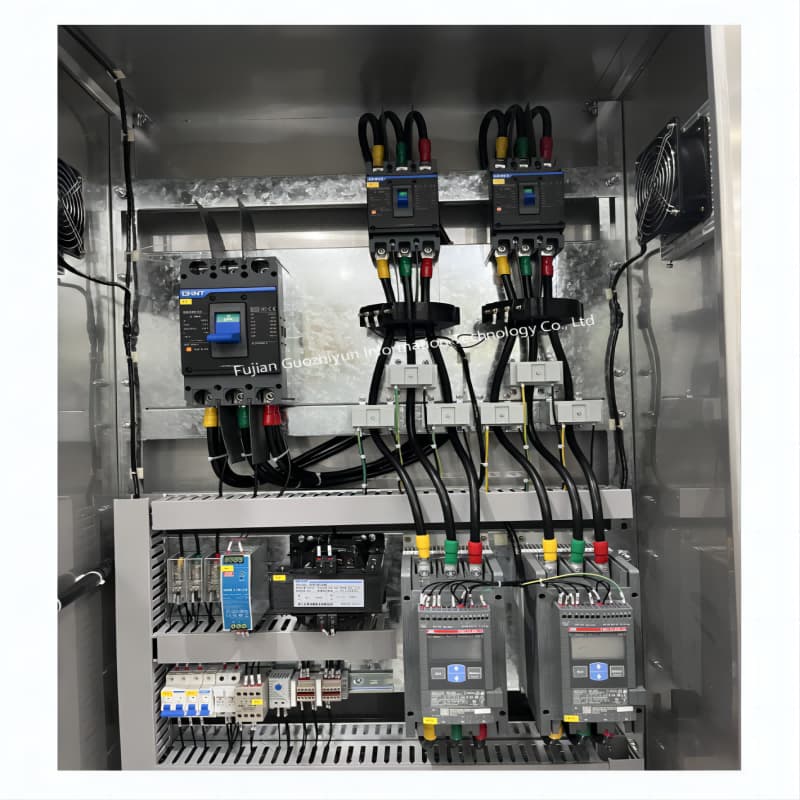

The function of the control cabinet： The main function of the control cabinet is to achieve centralized control and management of the power system or mechanical equipment. 1.PLC control cabinet： PLC control cabinet is a type of control cabinet that uses programmable logic controllers (PLCs) to control motors and switches. 2.ATS control cabinet： also known as automatic transfer switching equipment control cabinet, is mainly used in emergency power supply systems. 3.Variable frequency control cabinet: The variable frequency control cabinet is mainly used to adjust the working frequency of equipment, reduce energy loss, and can smoothly start the equipment, reducing the damage to the motor caused by the large current generated when the equipment is directly started. 4.Soft start control panel The motor soft start control cabinet is a type of motor control device that can achieve smooth and impactless starting of the motor throughout the entire starting process. It can also adjust the parameters during the starting process, such as current limit value and starting time, according to the characteristics of the motor load. 5.Motor control cabinet  Motor control cabinet is an electrical equipment specifically designed to control the operation of motors. Its main function is to control the starting, stopping, turning, and speed operations of the motor. At the same time, the motor control cabinet can also achieve protection for the motor, avoiding abnormal situations such as overcurrent, overvoltage, undervoltage, or short circuit that may cause motor damage.

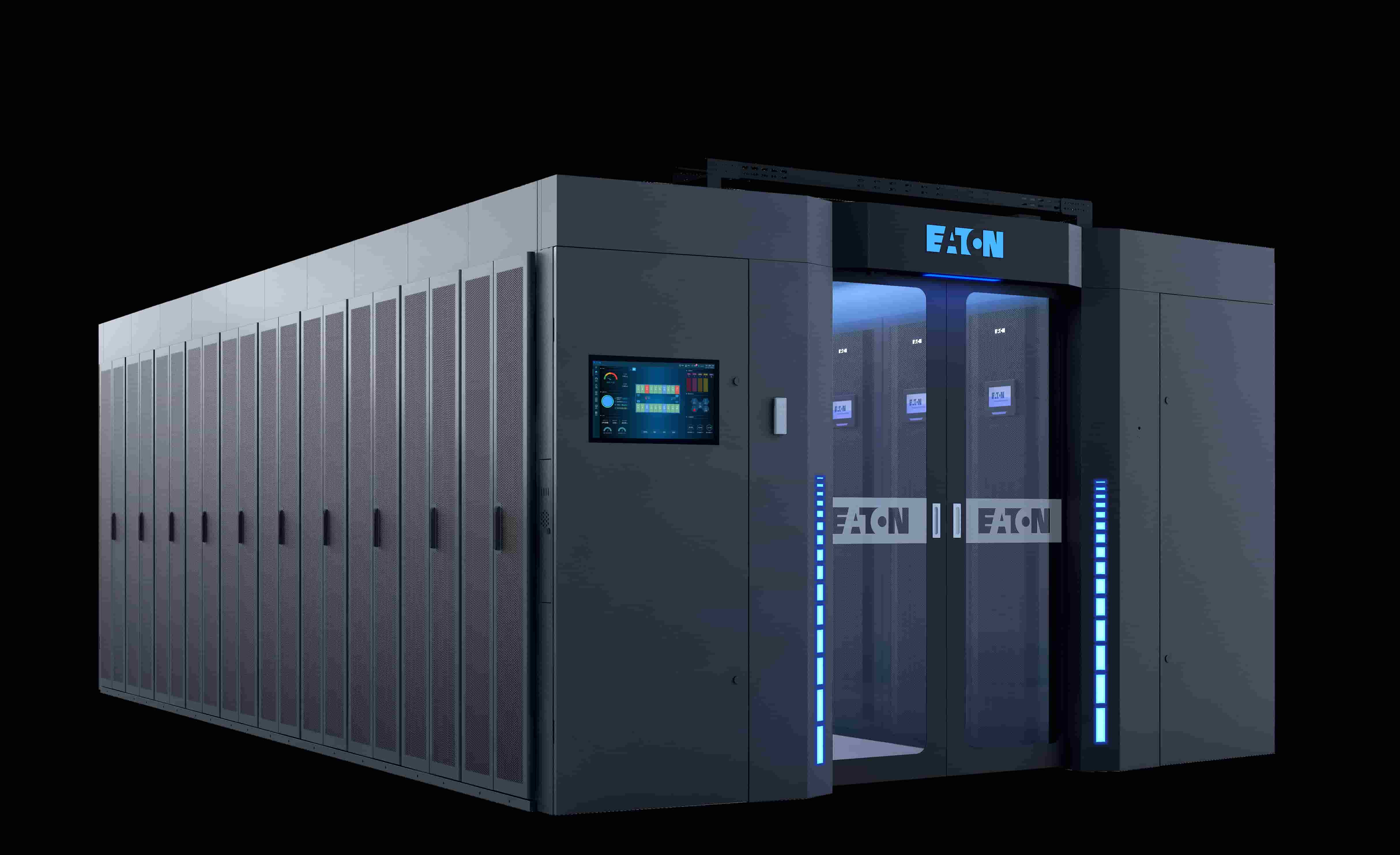

Of course, Eaton is currently recognized as a reputable and reliable uninterrupted power supply (UPS) brand.  For example, the Eaton 5PX is a new generation of online interactive UPS, equipped with an intuitive LCD display screen, accurate energy consumption measurement to the socket level, and energy efficiency up to 99%. It supports plug and play battery modules to extend battery life, suitable for servers, storage systems, VoIP devices, and network devices. There are many series for you to choose from: eaton ups 5px ,eaton 9px2200irt2u,eaton 93PR 15kVA Eaton UPS is renowned for its efficiency, reliability, and ability to provide clean and stable power protection for connected devices.
