control panel

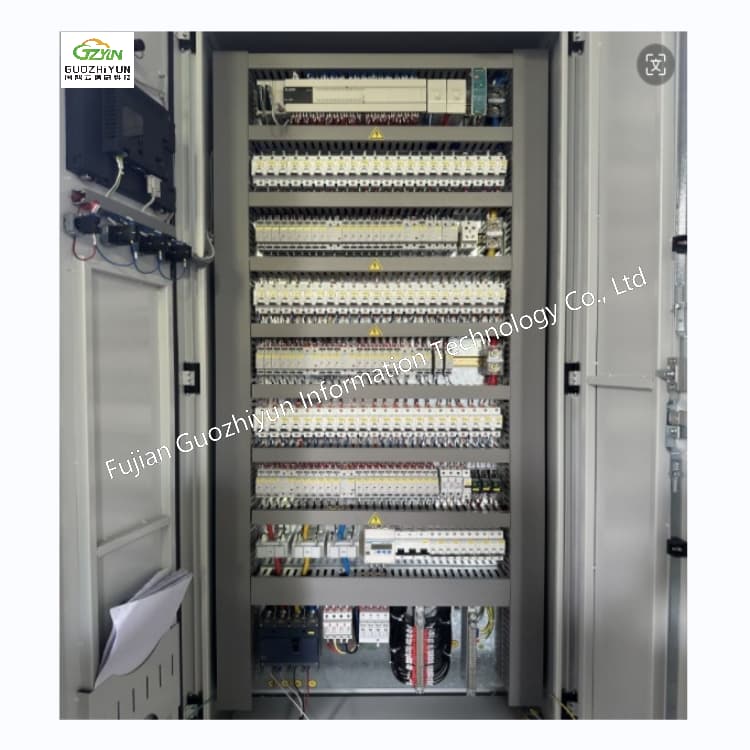

An electrical control cabinet is a cabinet used to centrally install components and equipment of an electrical control system, mainly used to start, control and monitor industrial machinery or systems. 1.Structure and design: Housing: Usually made of metal, with high strength and good sealing, protecting internal components from physical damage and environmental impact. Door: Designed to be removable and equipped with a transparent observation window for easy monitoring of operating status. Ventilation: Equipped with fans or vents to ensure heat dissipation of internal components and maintain normal operating temperature. Compartment: The internal space is divided into different functional areas, such as power area, control area, wiring area, etc., to optimize layout and facilitate maintenance. 2. Internal components Controllers: Such as PLC (Programmable Logic Controller), industrial computers or relay boards, acting as the brain of the system and executing control instructions. Drivers: Including inverters and servo drives, used to accurately control the speed and torque of the motor. Instruments: Such as voltmeters, ammeters and pressure gauges, used to display system operating parameters in real time. Circuit breakers and protection: Provide overload protection, short circuit protection, and ensure system safety. Terminal blocks and connectors: Used to connect and distribute power and signals, ensuring neat and reliable wiring. 3. Functions and Applications Control function: realize the control of motor start and stop, speed adjustment, running direction, etc. Monitoring function: collect system operation data through sensors for real-time monitoring. Protection function: prevent electrical accidents through relay protection and other automatic devices. Communication function: connect with the upper system or network through industrial communication protocol to realize data exchange and remote monitoring. 4. Application areas It is widely used in automated factories, water treatment facilities, food processing, chemical production, machinery manufacturing and other industries. 5. Notes Environmental requirements: Select the appropriate model and protection level according to environmental conditions (such as temperature, humidity, vibration). Safety: Must comply with relevant international and domestic safety standards. Maintenance: Regular inspection and maintenance to ensure long-term stable operation.

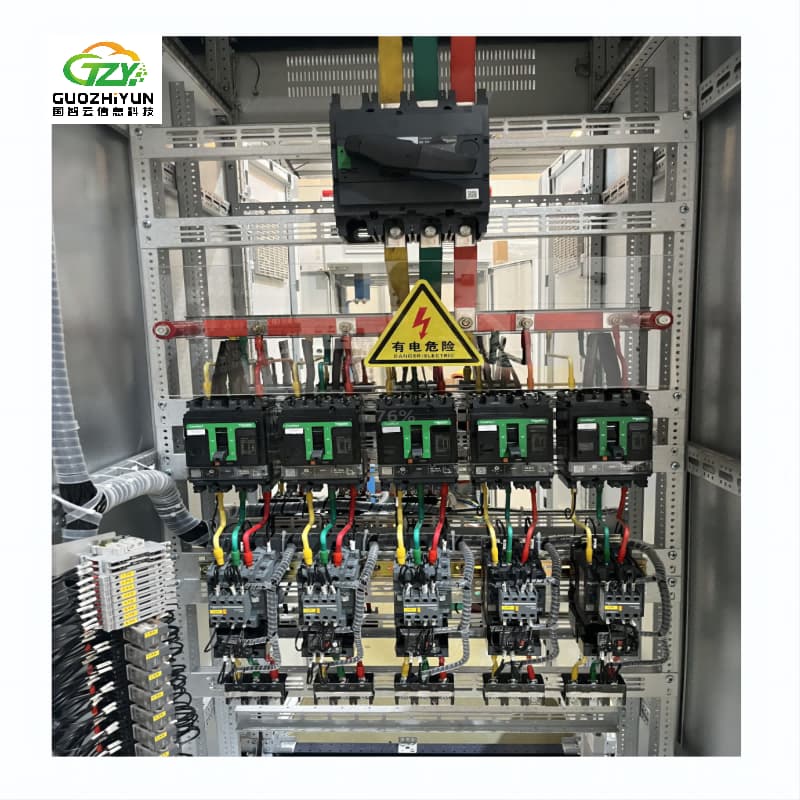

The main functions of the electrical control cabinet include connecting or disconnecting the circuit, protecting the circuit, and issuing alarms in the event of failure or abnormal operation. Shell：The control cabinet enclosure is an important component in electrical manufacturing and design. Its main function is to provide physical protection and environmental protection for the electrical equipment inside. Isolator：In electrical control cabinets, the role of isolators is not only to physically isolate electrical connections, but more importantly to provide a layer of safety protection to ensure that in certain abnormal situations, such as when exposed wires are energized or circuits fail, the danger of indirect electric contact can be effectively prevented. Transformer, Power Supply：Transformers play a vital role in the power system. They can convert any AC voltage into a target voltage with the same frequency to meet the needs of power transmission, distribution and use. Fuse：A fuse is an electrical component used to protect circuit safety. Its main function is to automatically cut off the power supply when the current exceeds the set value to prevent circuit overload, short circuit, failure and equipment damage. Breaker:A circuit breaker is a switching device that can close, carry and interrupt current under normal circuit conditions, and can close, carry and interrupt current under abnormal circuit conditions within a specified time. Terminals:Terminal blocks are an important part of electrical connections and are mainly used to achieve reliable connection and convenient disconnection between wires or cables. PLC：A microprocessor-based digital electronic device used for automated control that controls machinery or production processes by storing and executing control instructions. Cables, Connectors：The reliability of a control panel depends on the quality of the electrical connections between components, which are made up of cables and crimps at both ends. Cables are widely used in the fields of power transmission and communication, while connectors are used to connect cables to devices or between cables. Most electrical control panels have the above components, but it does not mean that every electrical control cabinet has the same functions. Our company uses high-end electrical cabinet accessories to provide you with the best customized services.
