Frequency conversion control cabinet has become one of the indispensable equipment in modern industrial and agricultural production due to its significant energy-saving effect, high control accuracy, extended equipment service life, powerful safety protection functions and wide application fields.
Item No :
YY-Q63Order(MOQ) :
3 unitsPayment :
T/T、PaypalProduct Origin :
Fujian/FuzhouColor :
Carbon steel and stainless steelShipping Port :
Ningbo,Mawei,ShenzhenLead Time :
30 daysWeight :
customized
With the frequency technology become more and more mature, the use of frequency inverter, PLC, digital-analog conversion module, temperature sensor, temperature module and other devices combine to form a closed-loop automatic temperature control system, the system can work smoothly and more stable, More important Its energy-saving reach to as much as 30% or more, can bring good economic benefits.

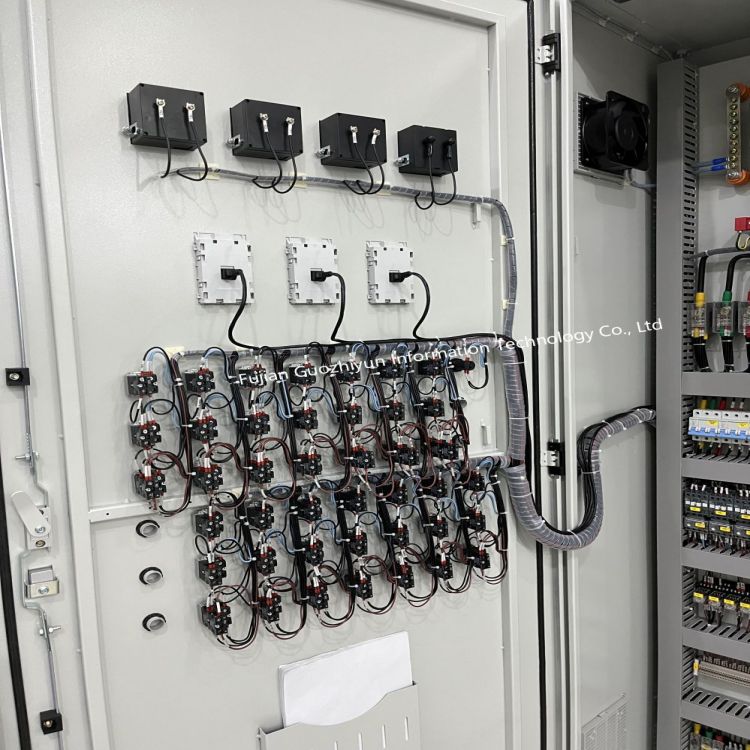

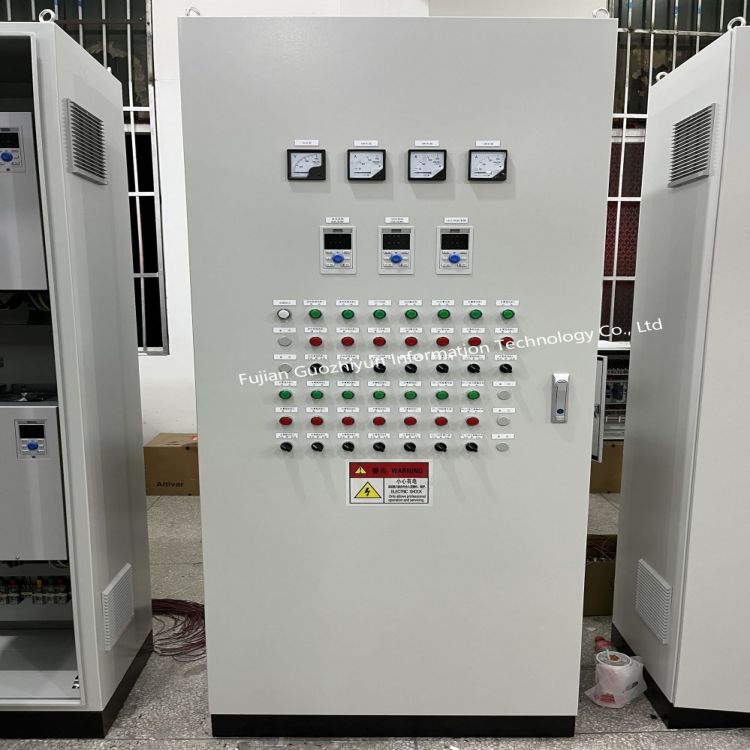

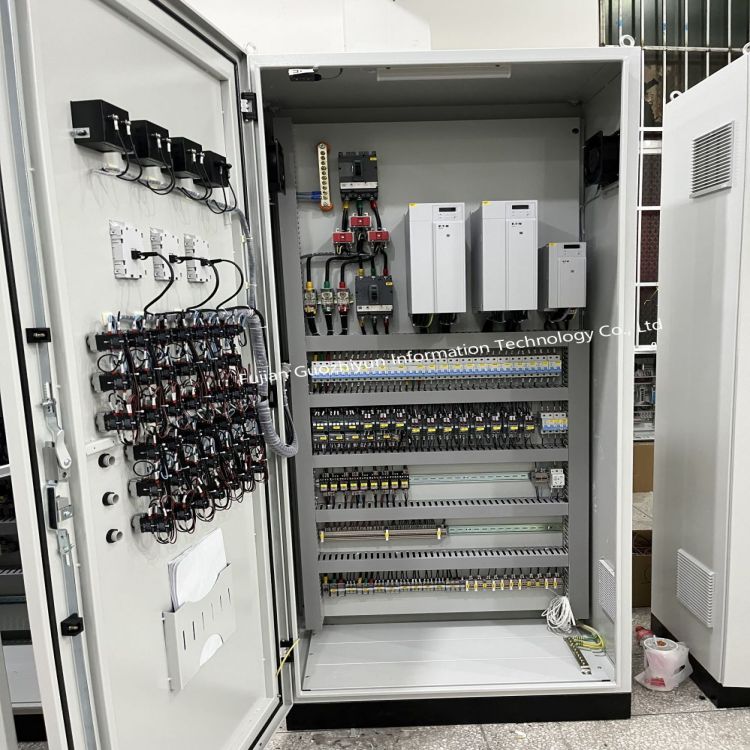

The frequency inverter control panel adopts the enclosed cabinet structure, adopts the frame skeleton, the surface coating spray, and easy to install the cabinet, the upper end can configure the bus bar .The keypad of frequency inverter leads to the front foot of cabinet and can operate directly, it can set local and remote control or PC/PLC communication control .The inverter control cabinet can display different kinds of function .

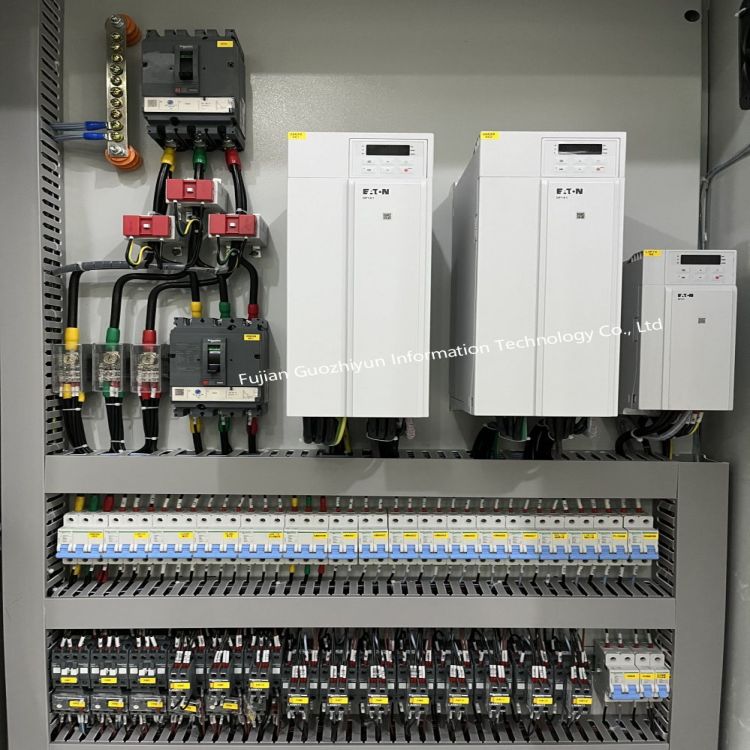

Frequency inverter is a dedicated accessory of inverter cabinet ,the variable frequency control the speed and the main technical parameters depends on the specification of built-in inverter and external configuration.Inverter cabinet have big difference according to the use of different application and different functions
