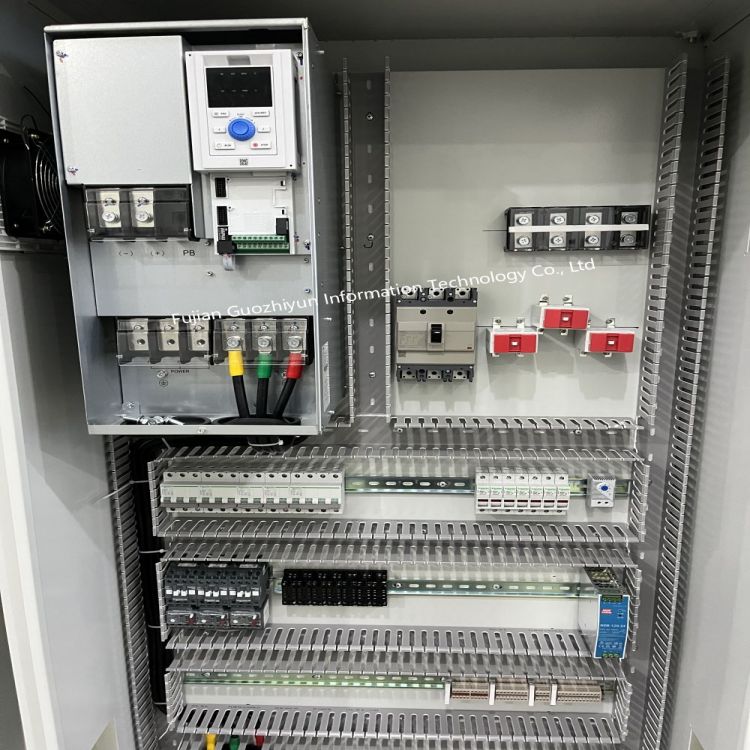

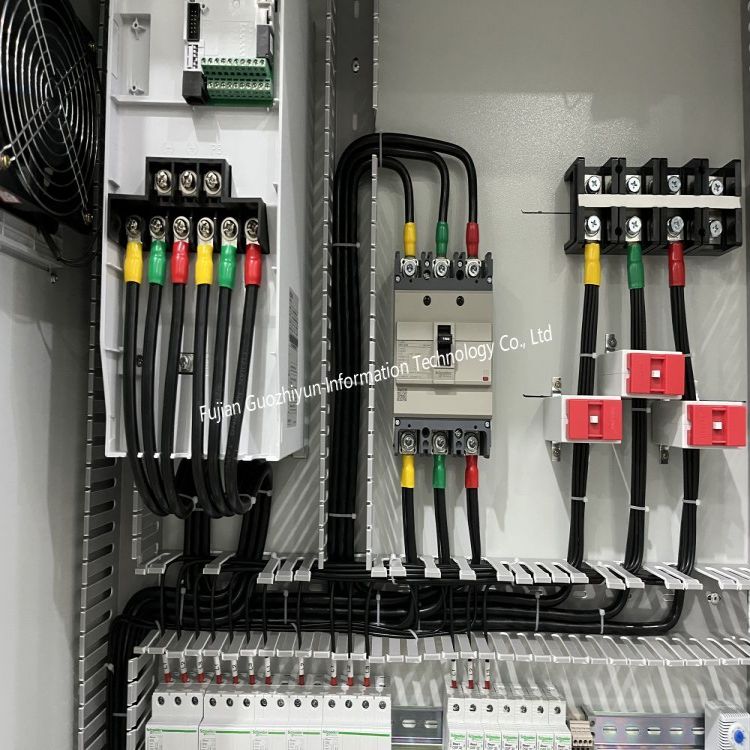

The frequency conversion control cabinet is designed with circuit breaker components, which can provide protection when short circuit or overload occurs in the circuit and frequency converter, and can cut off the power supply during maintenance to ensure the safety of operators.
Item No :
YY-Q59Order(MOQ) :
3 unitsPayment :
T/T、PaypalProduct Origin :
Fujian/FuzhouColor :
Carbon steel and stainless steelShipping Port :
Ningbo,Mawei,ShenzhenLead Time :
30 daysWeight :
customized
The frequency conversion control cabinet has a variety of control functions, such as power switching and protection, start and stop control, frequency adjustment, etc. These functions not only improve the reliability of the equipment, but also make the operation more convenient.
The operating costs of traditional motors mainly include initial purchase costs, maintenance costs and energy costs. Among them, energy costs account for about 77% of the total operating costs. The frequency conversion control cabinet significantly reduces the overall operating costs by reducing energy consumption and reducing equipment maintenance requirements.
The frequency conversion control system has precise pressure control capabilities and can automatically adjust the motor output according to system requirements to keep the system pressure change within a very small range (about 0.2 bar), thereby improving the working quality.
