The motor soft start control cabinet is a type of motor control device that can achieve smooth and impactless starting of the motor throughout the entire starting process. It can also adjust the parameters during the starting process, such as current limit value and starting time, according to the characteristics of the motor load.

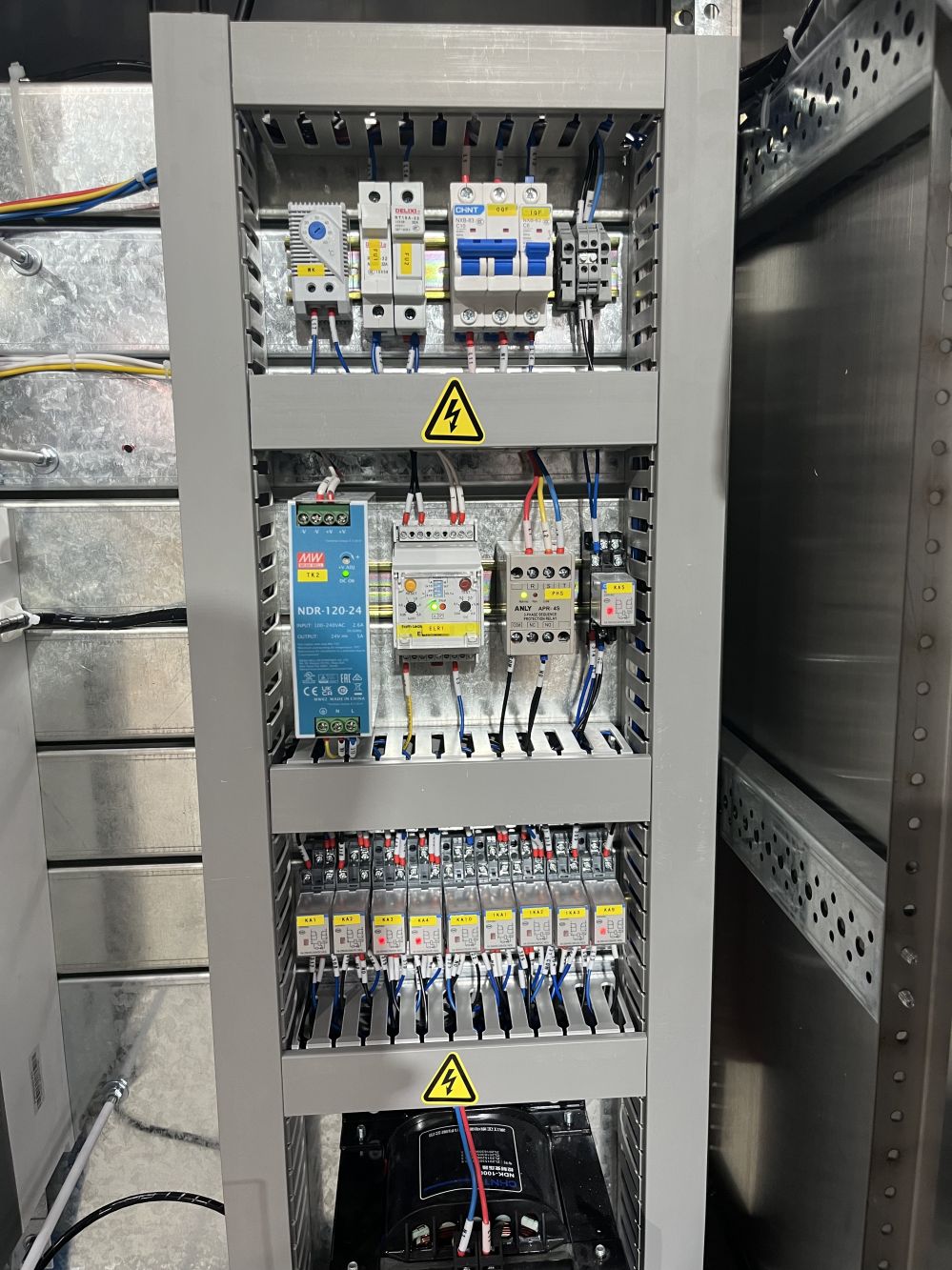

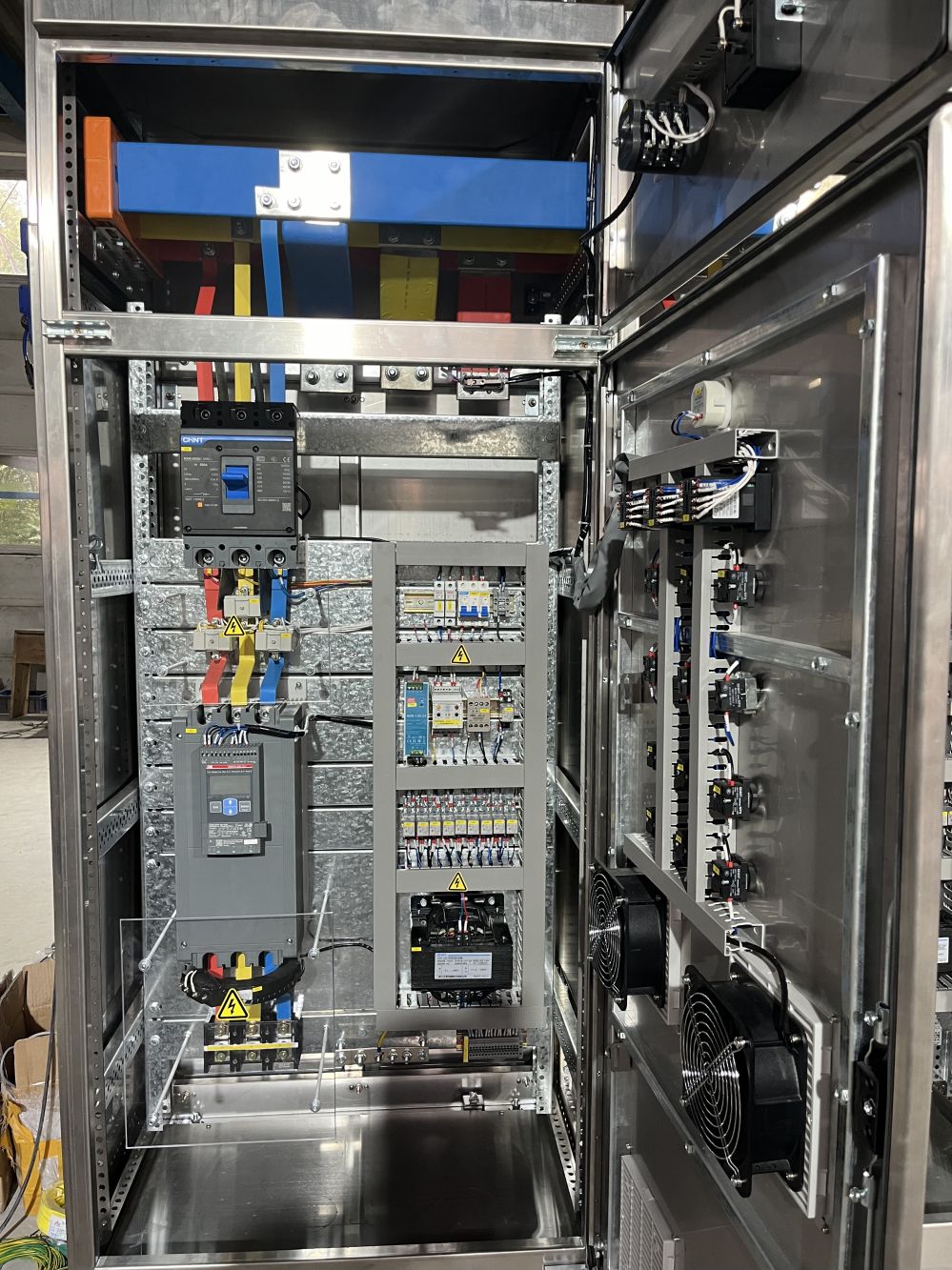

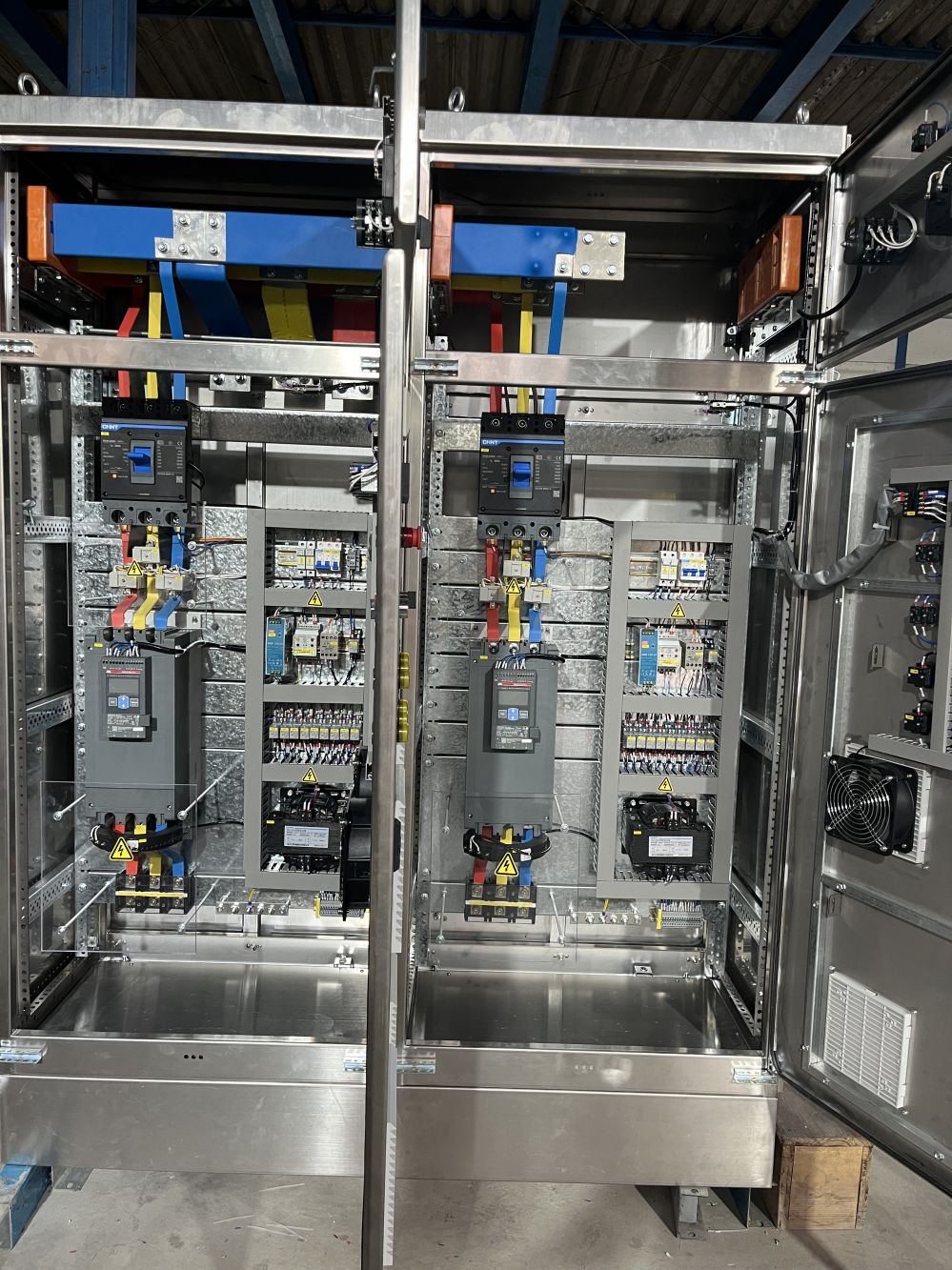

Structure of motor control cabinet The motor control cabinet consists of two parts: control circuit and power circuit. Among them, the control circuit mainly includes components such as controllers, contactors, relays, buttons, indicator lights, etc. These components can achieve functions such as starting, stopping, turning, and speed control of the motor. The power circuit mainly serves to supply power to the control circuit, including circuit breakers, wiring terminals, power relays, etc.

Soft start control cabinet： Soft start control cabinet is an electrical equipment used for motor control, which can reduce the starting current, reduce the impact on the distribution system, and extend the service life of the motor and related equipmen

Online motor soft starting cabinet fan water pump soft starting high and low pressure control panel complete set manufacturers

90kw soft start stainless steel power distribution board 440V 200 400 amp electrical panel motor start stop control cabinet

75kW - 10000kW soft starter liquid resistance soft starter for slip ring motor

Soft start control cabinet is an electrical equipment used for motor control, which can reduce the starting current, reduce the impact on the distribution system, and extend the service life of the motor and related equipmen

The motor control cabinet consists of two parts: control circuit and power circuit. Among them, the control circuit mainly includes components such as controllers, contactors, relays, buttons, indicator lights, etc. These components can achieve functions such as starting, stopping, turning, and speed control of the motor. The power circuit mainly serves to supply power to the control circuit, including circuit breakers, wiring terminals, power relays, etc.

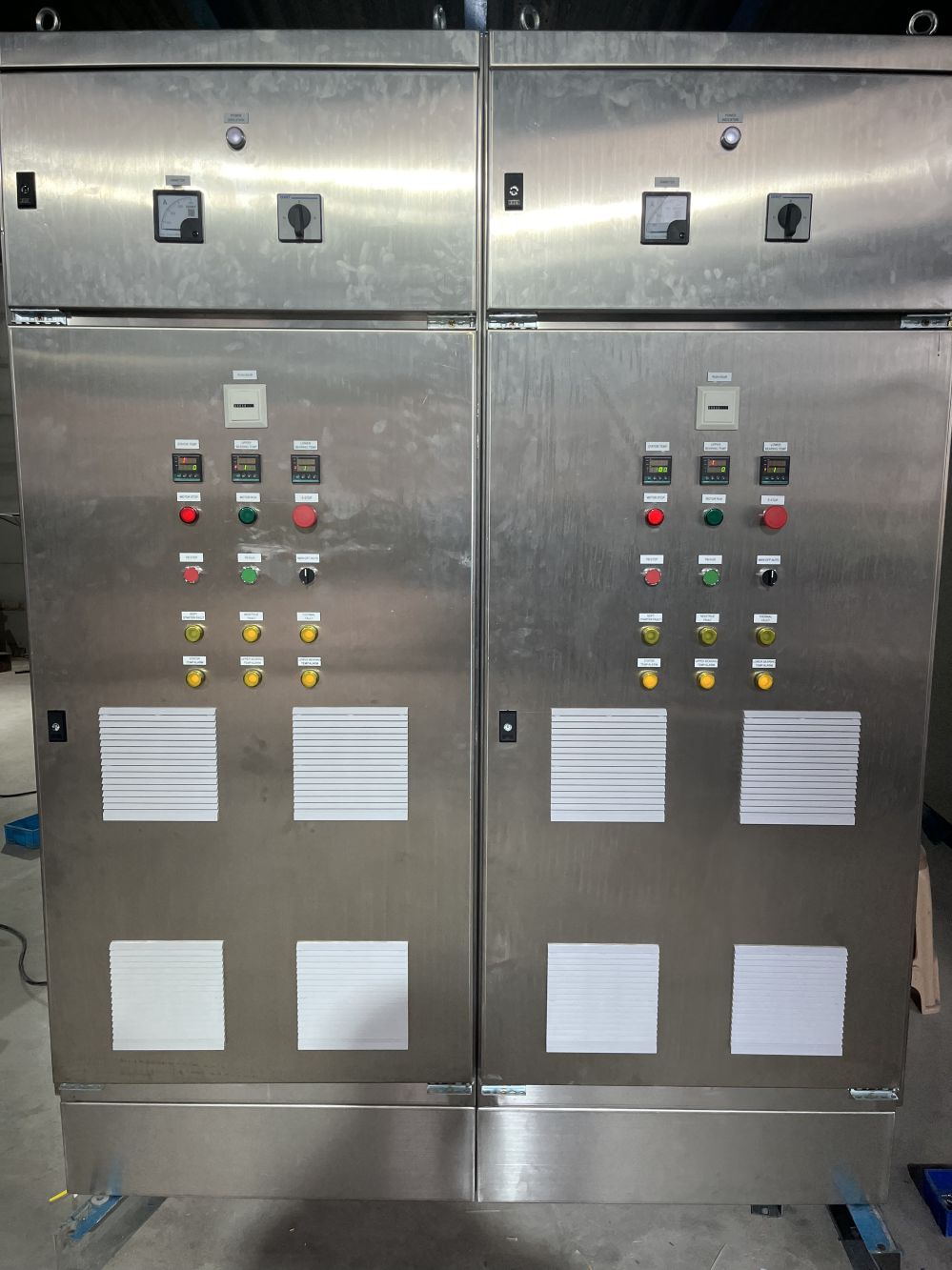

The soft start control panel is an advanced device for motor start and stop control, with smooth start, soft stop, light load energy saving and multiple protection functions.

A three-phase anti-parallel thyristor is used as a voltage regulator. The input voltage of the motor is adjusted by controlling the conduction angle of the thyristor, thereby achieving smooth starting and stopping.

Soft start control cabinet is mainly used for smooth starting and stopping of high-power motors, reducing the impact on the power grid when the motor starts, protecting the motor and power grid equipment, and extending the service life of the motor.
