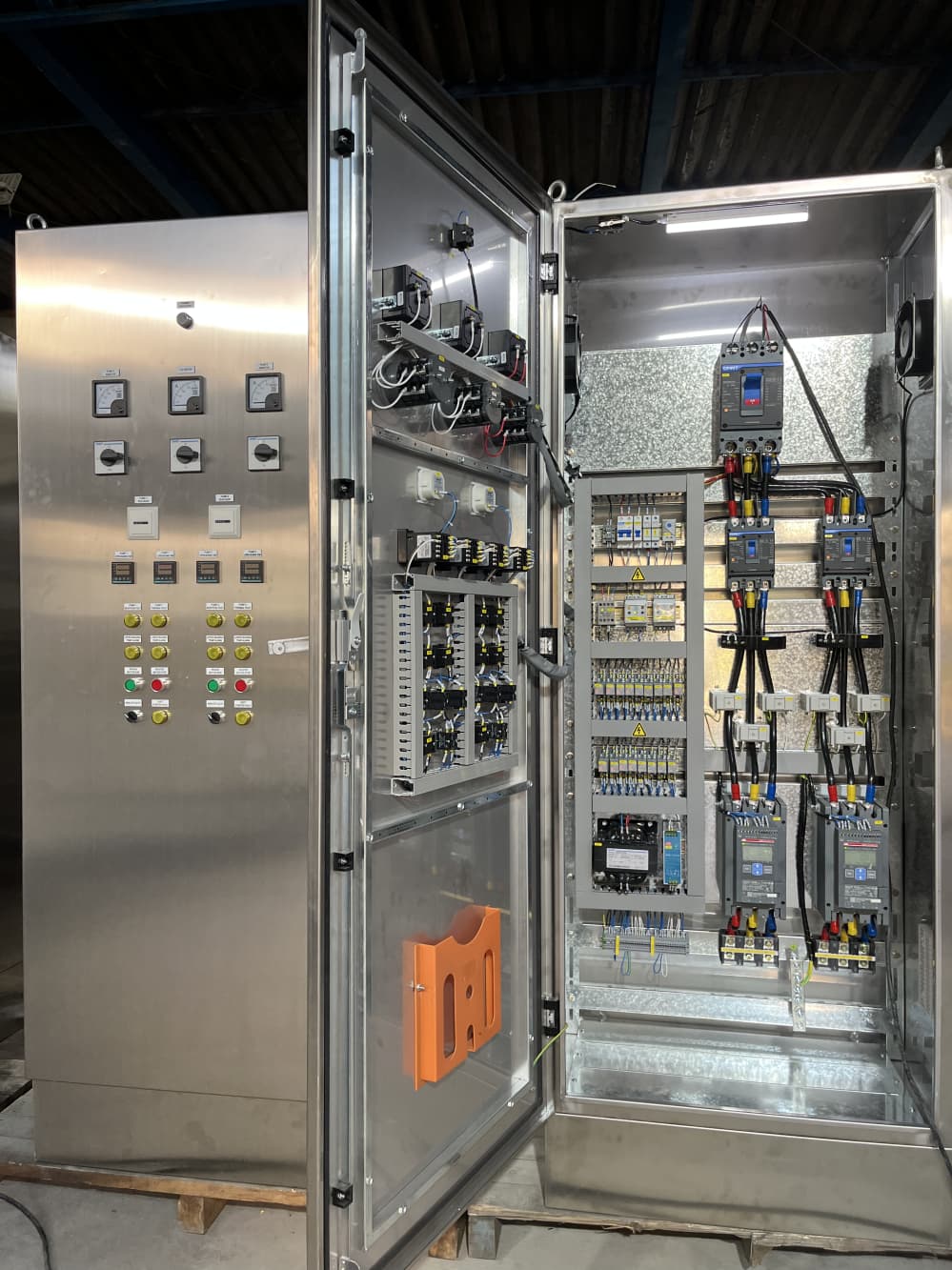

The motor soft start control cabinet is a type of motor control device that can achieve smooth and impactless starting of the motor throughout the entire starting process. It can also adjust the parameters during the starting process, such as current limit value and starting time, according to the characteristics of the motor load.
Item No :
GZY-F17AOrder(MOQ) :
3 unitsPayment :
T/T、PaypalProduct Origin :
Fujian/FuzhouColor :
Carbon steel and stainless steelShipping Port :
Ningbo,Mawei,ShenzhenLead Time :
30 daysWeight :
customizedThe main uses of the motor soft start control cabinet include:
1. Reduce the starting current of the motor, thereby reducing the distribution capacity and avoiding unnecessary investment in capacity expansion.
2. Reduce starting stress, which helps to extend the service life of electric motors and related equipment.
3. By smoothly starting and soft stopping, the surge problem that may be caused by traditional starting equipment is avoided.
4. It has a light load energy-saving function, which can automatically reduce the operating speed of the motor when it is under light load, thereby improving energy efficiency.
5. Provide multiple protection functions, such as overcurrent, overvoltage, overheating, etc., to ensure the safe operation of the motor and related equipment.
6. Adjust parameters based on load characteristics, such as current limiting values and starting time.
Whether it be Schneider, ABB, Omron, DELIXI,Eaton or other brands of electrical parts, we are used to working with the most reknowned brands and we are able to recommend the ones that best fit your application and your budget.
Tags :
The motor soft start control cabinet is a type of motor control device that can achieve smooth and impactless starting of the motor throughout the entire starting process. It can also adjust the parameters during the starting process, such as current limit value and starting time, according to the characteristics of the motor load.

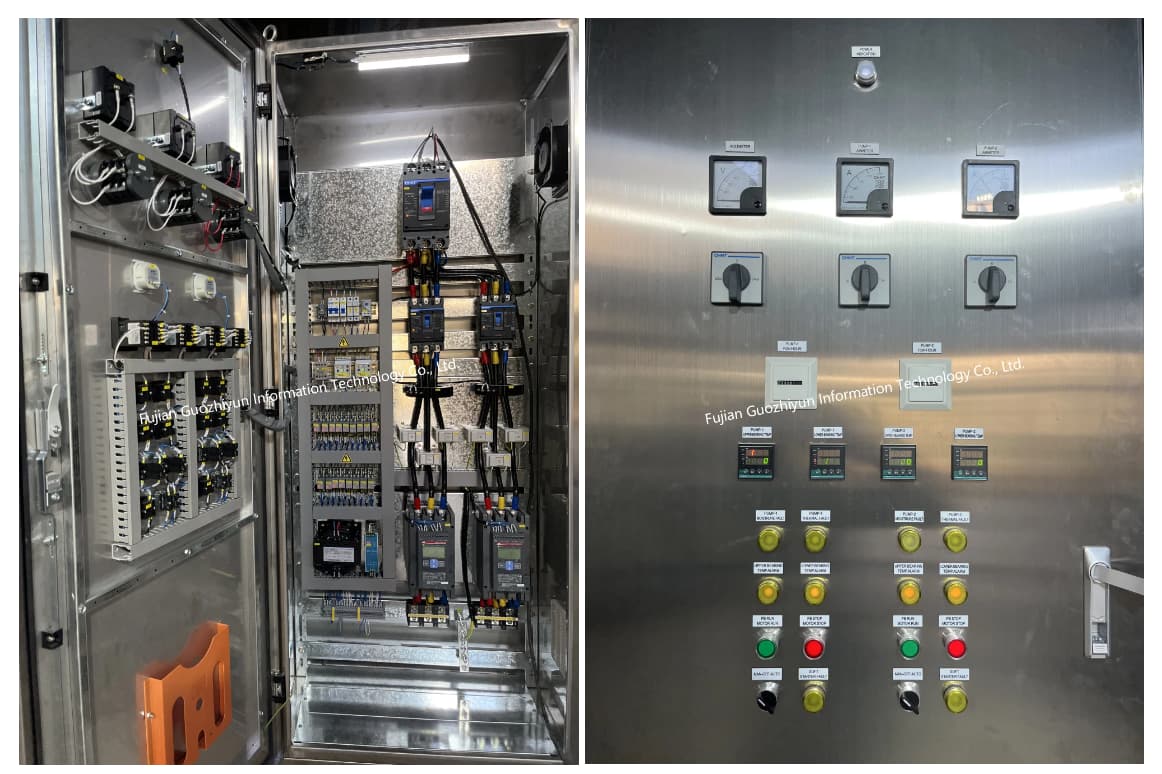

Structure of motor control cabinet The motor control cabinet consists of two parts: control circuit and power circuit. Among them, the control circuit mainly includes components such as controllers, contactors, relays, buttons, indicator lights, etc. These components can achieve functions such as starting, stopping, turning, and speed control of the motor. The power circuit mainly serves to supply power to the control circuit, including circuit breakers, wiring terminals, power relays, etc.
Soft start control cabinet： Soft start control cabinet is an electrical equipment used for motor control, which can reduce the starting current, reduce the impact on the distribution system, and extend the service life of the motor and related equipmen
Online motor soft starting cabinet fan water pump soft starting high and low pressure control panel complete set manufacturers
90kw soft start stainless steel power distribution board 440V 200 400 amp electrical panel motor start stop control cabinet
75kW - 10000kW soft starter liquid resistance soft starter for slip ring motor
Soft start control cabinet is an electrical equipment used for motor control, which can reduce the starting current, reduce the impact on the distribution system, and extend the service life of the motor and related equipmen
The motor control cabinet consists of two parts: control circuit and power circuit. Among them, the control circuit mainly includes components such as controllers, contactors, relays, buttons, indicator lights, etc. These components can achieve functions such as starting, stopping, turning, and speed control of the motor. The power circuit mainly serves to supply power to the control circuit, including circuit breakers, wiring terminals, power relays, etc.

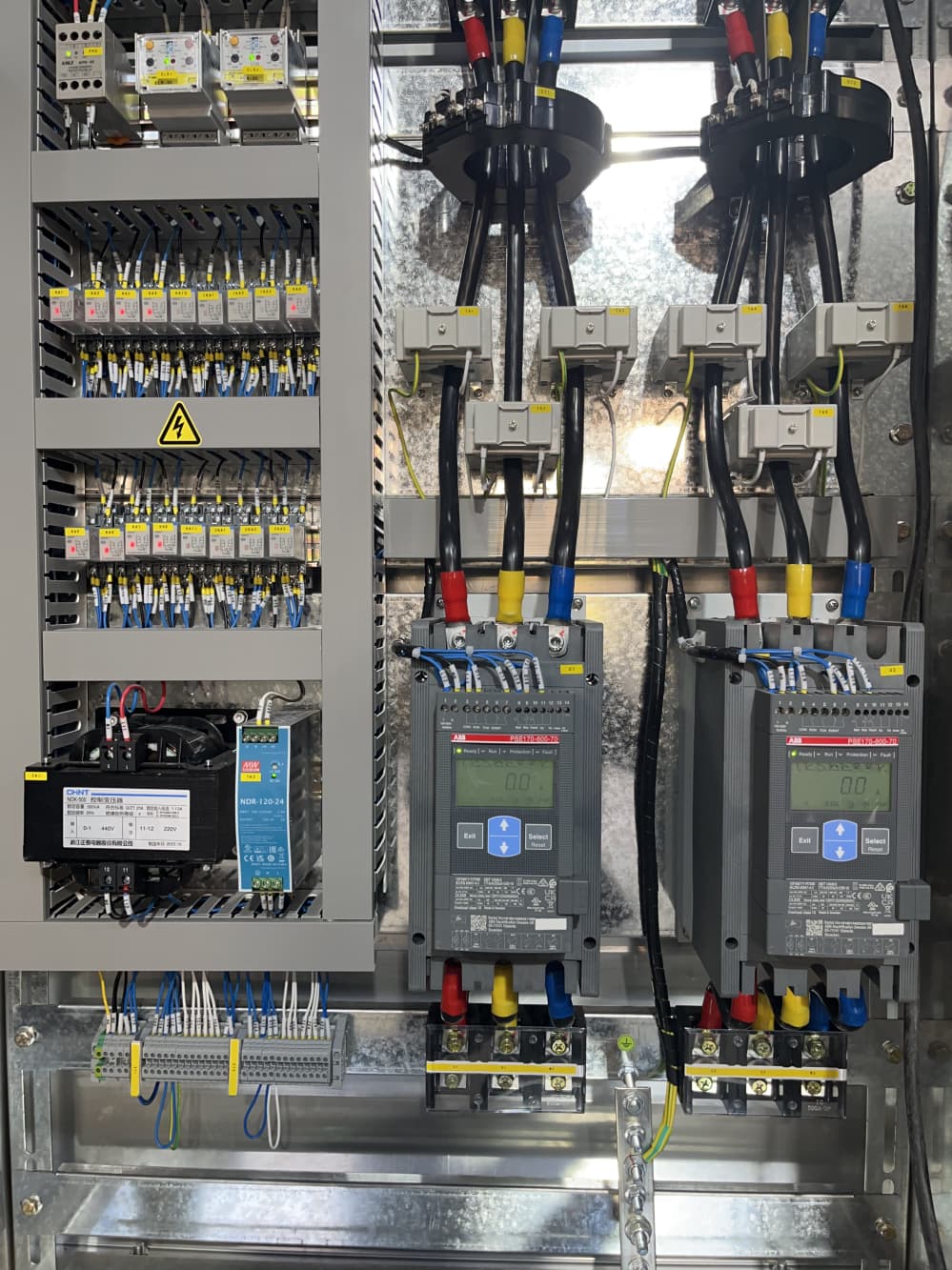

The soft start control panel is an advanced device for motor start and stop control, with smooth start, soft stop, light load energy saving and multiple protection functions.

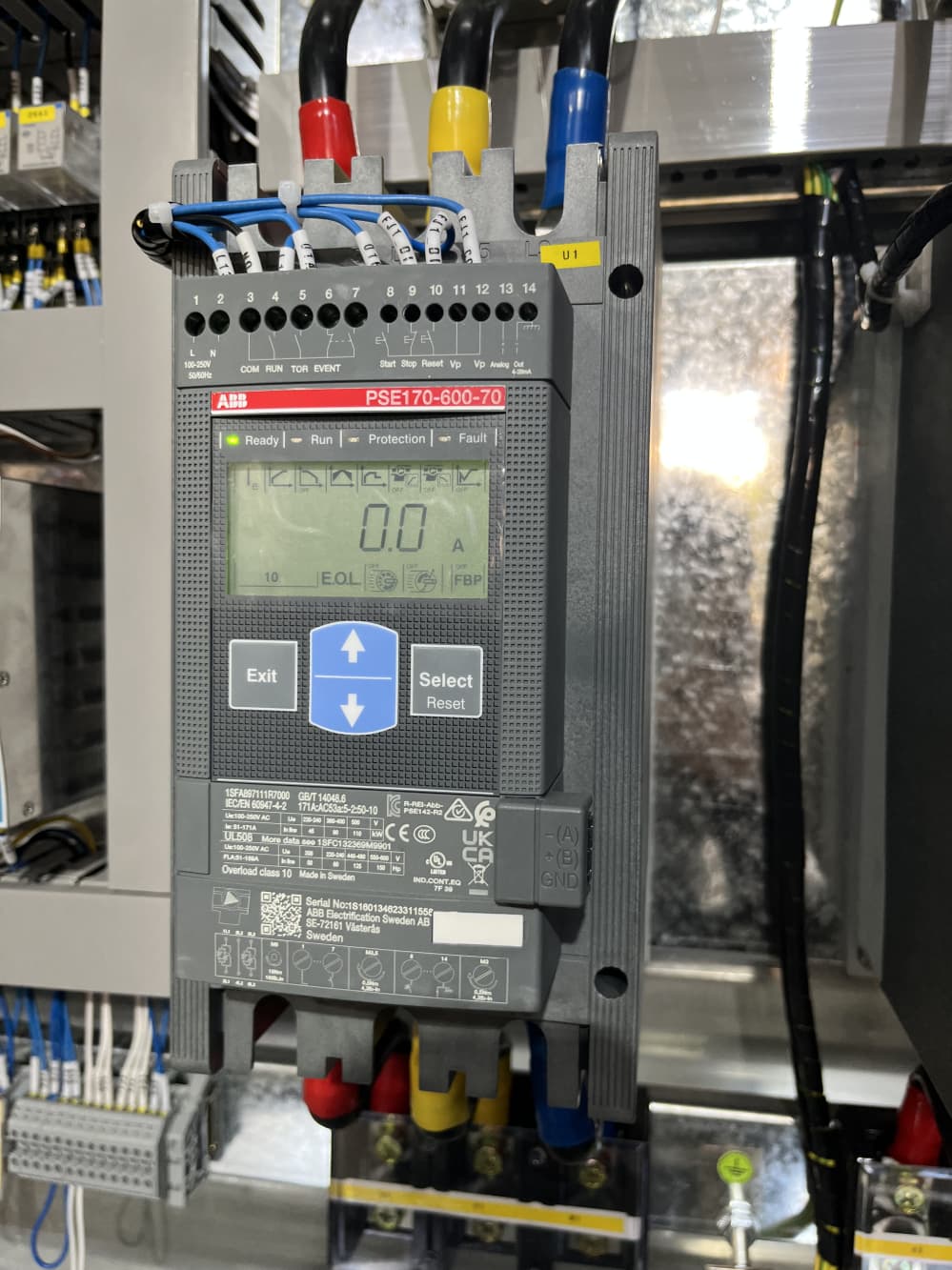

A three-phase anti-parallel thyristor is used as a voltage regulator. The input voltage of the motor is adjusted by controlling the conduction angle of the thyristor, thereby achieving smooth starting and stopping.
Soft start control cabinet is mainly used for smooth starting and stopping of high-power motors, reducing the impact on the power grid when the motor starts, protecting the motor and power grid equipment, and extending the service life of the motor.
The soft start control cabinet is a device used to control the start of high-power motors. Its working principle is mainly based on power electronics technology and microprocessor control technology. When the motor starts, the soft start control cabinet slowly adds current and voltage to the motor through the internal soft starter to avoid the impact of instantaneous high current on the motor and the power grid.
A soft start control panel is a device used to control the starting process of a motor. It gradually increases the voltage and frequency of the motor so that the motor gradually accelerates to the rated speed during the starting process, thereby avoiding the impact on the motor and the power grid during direct starting. The soft start control panel usually contains a microprocessor controller that can automatically adjust the starting characteristics of the motor according to preset parameters, such as starting time, acceleration and deceleration.
